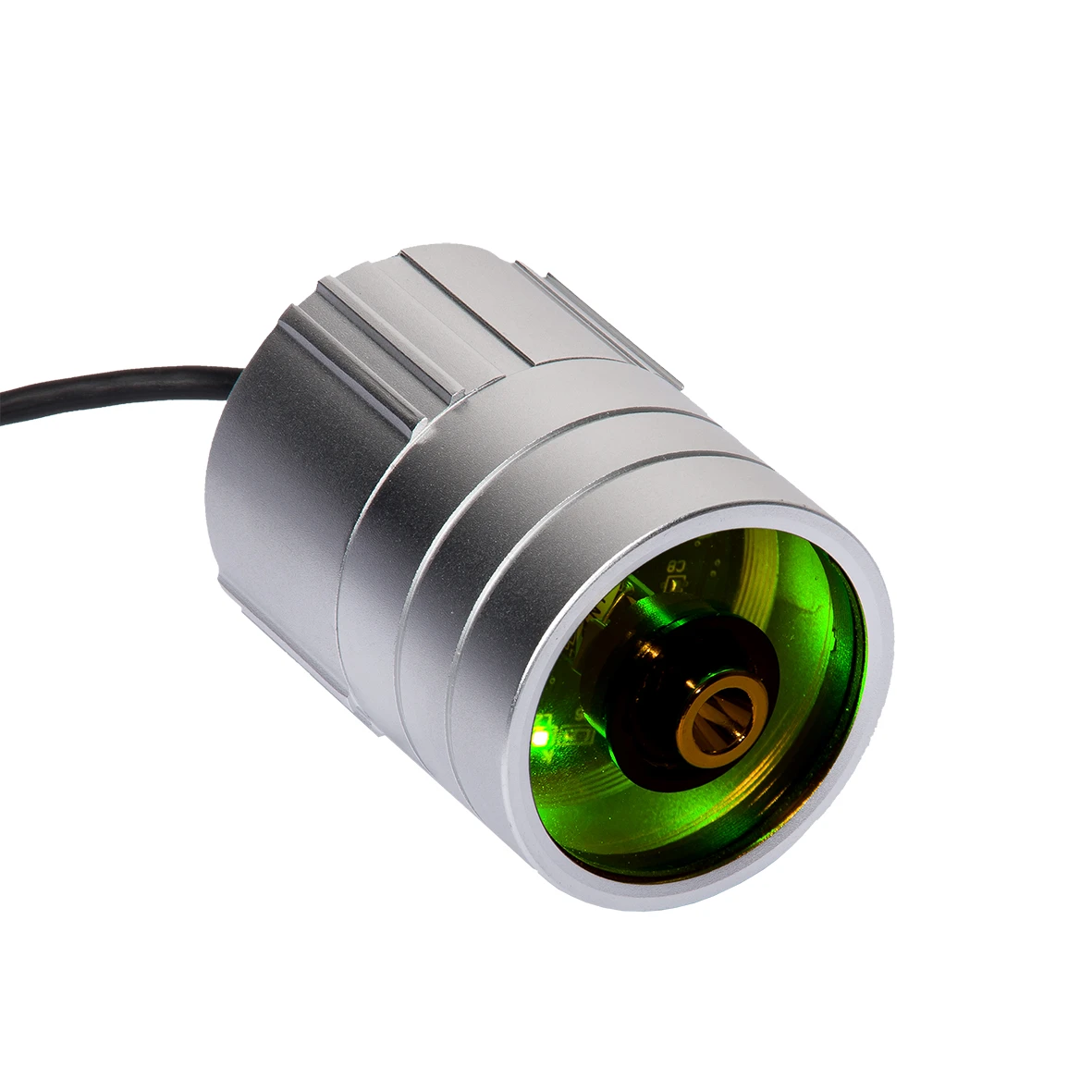

DIMLUX - INFRARED LEAF TEMPERATURE CAMERA FOR MAXI CONTROLLER - 5 METRE CABLE
Cod. 244
Brand: DIMLUX
The Dimlux Thermal Imager is a revolutionary piece of equipment that takes accurate leaf temperature readings in order to integrate the information into the Dimlux Maxi Controller. This data is...
Standard price
€254,38 VAT included(22%)
Recalculation in progress … The Dimlux Thermal Imager is a revolutionary piece of equipment that takes accurate leaf temperature readings in order to integrate the information into the Dimlux Maxi Controller. This data is then used in conjunction with the ambient temperature and humidity readings to calculate and display the vapour pressure deficit (VPD) level. The higher the VPD reading, the greater the pressure deficit between the plants and the surrounding air. Large pressure deficits mean that your plants will lose more water through their stomata. Small pressure deficits mean that plants retain their water more easily (ideal for cuttings, etc.). The Maxi Controller is able to adjust the light output according to the temperature difference between the plants and the surrounding atmosphere, ensuring that VPD levels are always within the correct range.
Key features Dimlux thermal imaging camera:
- Infrared heat detection camera
- Ultra-precise environmental control
- Allows the Maxi Controller to automatically calculate VPD
- Very easy to install: connects directly to the Maxi Controller
- Measures actual plant leaf temperature
Contains:
1 x Dimlux thermal imaging camera,
1 x light protection screen
1 x 5 metre cable
Designed for use with the separately available Dimlux Maxi Controller
How to use the Dimlux thermal imaging camera:
Set-up is relatively simple. The plant camera can be connected directly to the 'Infrared' socket on the Maxi Controller and mounted in a suitable place at a 45 degree angle. The camera will cover an area equal to the distance squared. In other words, if the camera is 40 cm away, the area it would cover would be 40 cm square.
The Maxi Controller gives readings in kilopascals (kPa). As a general rule, VPD readings in kPa should be around 1.2. VPD levels are commonly displayed in millibars. Fortunately, millibars can easily be converted to kilopascals. 17 millibars would be equal to 1.7 kilopascals
There are a number of items that will help you improve the performance of your Dimlux Maxi Controller and Dimlux reflectors and ballasts, which include:
Temperature probe with 5m cable ensures that when temperatures exceed the desired settings, the Dimlux reflectors dim or switch off
Humidity sensor with 5m cable enables the OptiClimate system to take the humidity level in the grow room into account when adjusting the environmental conditions

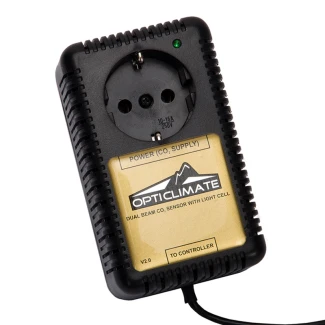

CO2 sensor for Dimlux Maxi Controller provides accurate information about the carbon dioxide content in the grow area and can be used to power a CO2 controller.
CO2 sensor for Dimlux Maxi Controller provides accurate information about the carbon dioxide content in the grow area and can be used to power a CO2 controller.
CO2 sensor + Gas Protect for Maxi Controller Dimlux to switch on and off CO2 generating equipment, also has sensors for methane (CH4) and carbon monoxide (MH4).
Fan/Aux Box for Maxi Controller Dimlux to control a heater, a humidifier, a dehumidifier and an extractor fan
-
